14 gauge galvanized wire mesh

Home/Wire mesh/14 gauge galvanized wire mesh
  • 14 gauge galvanized wire mesh

Project Description

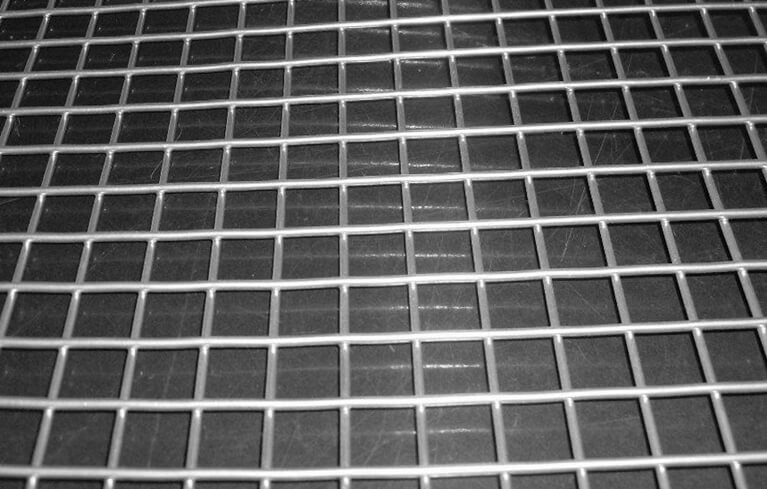

14 gauge galvanized wire mesh

REQUEST A SAMPLE/QUOTE

Description:

    14 gauge galvanized wire mesh,industry use welded wire mesh,with 14 gauge wire diameter,the mesh opening can be 1-1/2”x1-1/2”,1’’x2”,2”x2” or customized aperture.The finished steel wire mesh with hot-dip galvanized to make sure this mesh can be anti-rust. You also can choose stainless steel welded wire mesh as a much higher quality welded wire mesh product.
The versatility of welded wire mesh materials,wire diameters,openings make all the wire mesh products have a wide range of applications. And welded wire mesh is stable,rigid,smooth surface,so it offers a good strength and excellent aesthetic appearance.

  • Materials:   Carbon steel wire,Stainless steel wires
  • Surface:    Standard,Electro galvanized,Hot dipped galvanized,PVC coated,
welded wire mesh opening

Specification:

  • Wire diameter :  0.5mm- 10.0mm
  • Opening :  Square 1/4″,1/3″,3/8″,1/2″,5/8″,3/4″,1″,2″,3″,etc
    Rectangular 1/4″x1/2″,1/2″x1″,1″x2″,etc
  • Width : Standard less than 2000mm
  • Length :  Coil or customized.

    14 gauge galvanized wire mesh is available in a variety of materials,wire diameter,openings and can be cut to the special sheets according to the applications and projects requirements.

welded wire mesh packing

Application:

14 gauge galvanized wire mesh has endless applications in industrial,commercial and decoration. Such as security,cages, covers,screens, reinforcement,fencing, sifting, machinery guards, racking,shelving,wall decoration and so on.

Welded wire mesh size
Mesh opening Wire Gauge (BWG)
Inch mm
1/4”x1/4” 6.4mmx6.4mm 22,23,24
3/8”x3/8” 10.6mmx10.6mm 19,20,21,22
1/2”x1/2” 12.7mmx12.7mm 16,17,18,19,20,21,22,23
5/8”x5/8” 16mmx16mm 18,19,20,21
3/4”x3/4” 19.1mmx19.1mm 16,17,18,19,20,21
1’’x1/2” 25.4mmx12.7mm 16,17,18,19,20,21
1-1/2”x1-1/2” 38mmx38mm 14,15,16,17,18,19
1’’x2” 25.4mmx50.8mm 14,15,16
2”x2” 50.8mmx50.8mm 12,13,14
