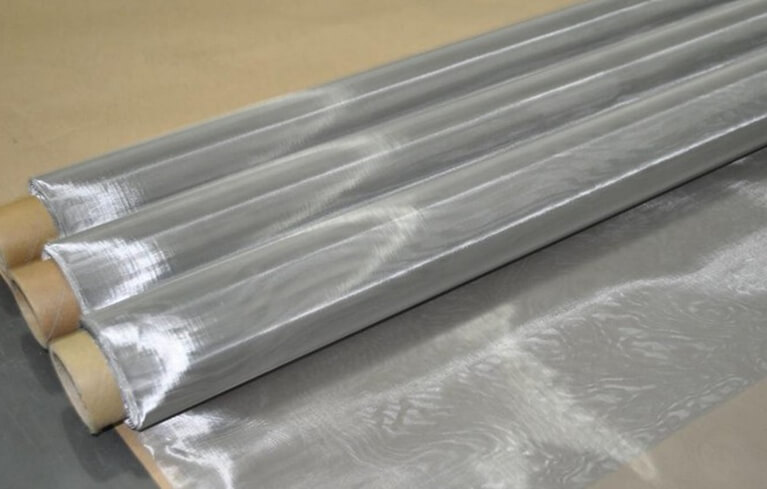

200 mesh stainless steel screen

Description:

    200 mesh stainless steel screen,one of most popular woven wire mesh with mesh 200×200,wire diamater can be less than 0.0533 mm(0.0021inch),the aperture larger than 0.0737 mm(0.0029inch). The aperture will be larger as well as the wire diameter become more thin.
The variety of woven wire mesh materials and weave patterns make the finished 200 mesh stainless steel screen have many sizes and woven wire mesh products.
So it is a versatile wire mesh product,have a widely application in industrial, commercial.

  • Materials:   Stainless steel 201,304,304L,316,316L grade
  • Weaving methods:    Plain weave, Twilled weave, Dutch weave,Dutch twill
woven wire mesh weaving method

Specification:

  • Wire diameter :  0.02mm- 2.0mm
  • Meshes : 1–635 meshes
  • Width : Standard less than 2000mm
  • Length :  30 mts/Coil or customized.

    200 mesh stainless steel screen is available in a variety of raw materials,wire diameter,meshes (aperture),weave methods and also can be cut and form to the special sheets or types according to the applications and projects requirements.

woven wire mesh

Application:

Woven wire mesh has endless applications in industrial,commercial and decoration. Such as filters, sieves, separators, strainers, baskets, gas diffusion, drying and so on.

Woven wire mesh size

Mesh  Wire diameter  Aperture
Inch mm Inch mm
1×1 0.08 2.03 0.92 23.37
2X2 0.063 1.6 0.437 11.1
3X3 0.054 1.37 0.279 7.09
4X4 0.063 1.6 0.187 4.75
4X4 0.047 1.19 0.203 5.16
5X5 0.041 1.04 0.159 4.04
6X6 0.035 0.89 0.132 3.35
8X8 0.028 0.71 0.097 2.46
10X10 0.025 0.64 0.075 1.91
10X10 0.02 0.51 0.08 2.03
12X12 0.023 0.584 0.06 1.52
12X12 0.02 0.508 0.063 1.6
14X14 0.023 0.584 0.048 1.22
14X14 0.02 0.508 0.051 1.3
16X16 0.018 0.457 0.0445 1.13
18X18 0.017 0.432 0.0386 0.98
20X20 0.02 0.508 0.03 0.76
20X20 0.016 0.406 0.034 0.86
24X24 0.014 0.356 0.0277 0.7
30X30 0.013 0.33 0.0203 0.52
30X30 0.012 0.305 0.0213 0.54
30X30 0.009 0.229 0.0243 0.62
35X35 0.011 0.279 0.0176 0.45
40X40 0.01 0.254 0.015 0.38
50X50 0.009 0.229 0.011 0.28
50X50 0.008 0.203 0.012 0.31
60X60 0.0075 0.191 0.0092 0.23
60X60 0.007 0.178 0.0097 0.25
70X70 0.0065 0.165 0.0078 0.2
80X80 0.0065 0.165 0.006 0.15
80X80 0.0055 0.14 0.007 0.18
90X90 0.005 0.127 0.0061 0.16
100X100 0.0045 0.114 0.0055 0.14
100X100 0.004 0.102 0.006 0.15
100X100 0.0035 0.089 0.0065 0.17
110X110 0.004 0.1016 0.0051 0.1295
120X120 0.0037 0.094 0.0064 0.1168
150X150 0.0026 0.066 0.0041 0.1041
160X160 0.0025 0.0635 0.0038 0.0965
180X180 0.0023 0.0584 0.0033 0.0838
200X200 0.0021 0.0533 0.0029 0.0737
250X250 0.0016 0.0406 0.0024 0.061
270X270 0.0016 0.0406 0.0021 0.0533
300X300 0.0051 0.0381 0.0018 0.0457
325X325 0.0014 0.0356 0.0017 0.0432
400X400 0.001 0.0254 0.0015 0.37
500X500 0.001 0.0254 0.001 0.0254
635X635 0.0008 0.0203 0.0008 0.0203
(Available in stainless steel 304, 304L, 316 & 316L grade)
