galvanized serrated grating

Home/Grating/galvanized serrated grating
  • galvanized serrated grating

Project Description

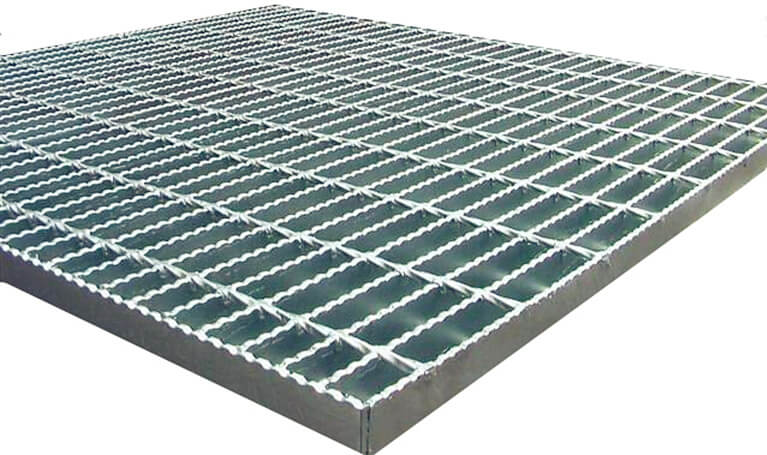

galvanized serrated grating

Request a Sample/Quote

Description:

    Galvanized serrated grating, also know as anti slip welded steel grating, the most strong and durable metal grating products. They are made from the mild carbon steel or stainless steel. We provide a full solution of steel bar grating, press locked grating,heavy duty gratingsteel stair treads,plank gratings,safety grating, trench cover,etc. All the gratings are extremely strong and durable for all the bearing application. And all grating products are fully recyclable.
Due to the extremely strong and durable for all the bearing application,galvanized serrated grating has become the most popular grating in the markets.The stability makes them have a much higher performance in the application.

We also can shear or form the steel gratings to any specification or desired shape.  Because of those excellent characteristic,the galvanized serrated grating can be widely used in flooring,deck,walkway,platform, decoration,etc.

  • Materials:
    Mild Carbon Steel
    Stainless Steel 304,316
  • Surface treatment:
    Hot dipped Galvanized
    Painting
all kinds of steel grating

Specification:

  • Cross bars : Dia. 5mm,6mm,8mm (Round bar)/5*5mm,6*6mm,8*8mm (Twist bar)
  • Cross bar spacing : 40,50,60,65,76,100,101.6,120,130mm, etc.
  • Bearing bars : 20*5,25*3,25*4,25*5,30*3,30*4,30*5,32*3,32*5,40*5,50*4… 75*8mm, etc.
  • Bearing bar spacing : 20,25,30,32.5,34.3,40,50,60,62,65mm

    Galvanized serrated grating is available in a variety of bearing bar thicknesses,depth and spacing according to the applications and loading requirements.
They are also available in either smooth top or serrated of anti slip grating. As one of leading manufacturer and fabricator of electro forge welded steel grating in China, we supply a variety of sizes for shipment in panels or other specs.

steel grating holemetals China

Application:

    Galvanized serrated grating is widely used in flooring, catwalk, mezzanine,decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, wash rack, ventilation screen, storage rack, window and machinery safe guards, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area.
You also can choose our stainless steel grating if others specials environmental challenge. The stainless steel grating is used in  and is also used in many gas and oil producers,chemical plants,food processing facilities and other commercial,architectural applications.
