Project Description

steel grating fence

Request a Sample/Quote

Description:

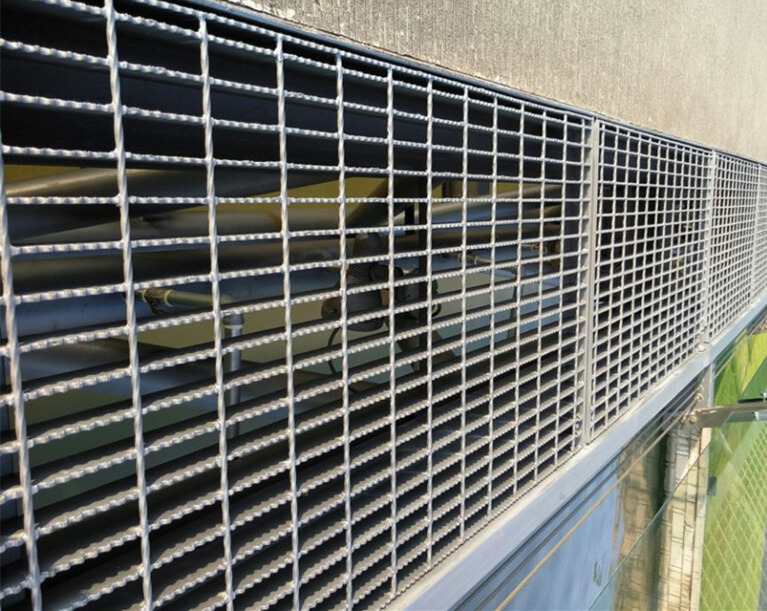

    Steel grating fence, also know as welded steel bar grating fencing, the most strong and durable metal grating products. They are made from the mild carbon steel . We provide a full solution of steel bar grating, press locked grating,heavy duty gratingsteel stair treads,plank gratings,safety grating, trench cover,etc. All the gratings are extremely strong and durable for all the bearing application. And all grating products are fully recyclable.
Due to the extremely strong and durable for all the bearing application, steel grating fence has become the most popular grating fence in the markets. The stability makes them have a much higher performance in the application.

We also can shear or form the steel gratings to any specification or desired shape.  Because of those excellent characteristic,the steel grating fence can be widely used in fence,security.

  • Materials:
    Mild Carbon Steel
    Stainless Steel 304,316
  • Surface treatment:
    Hot dipped Galvanized
    Painting
all kinds of steel grating

Specification:

  • Cross bars : Dia. 5mm,6mm,8mm (Round bar)/5*5mm,6*6mm,8*8mm (Twist bar)
  • Cross bar spacing : 40,50,60,65,76,100,101.6,120,130mm, etc.
  • Bearing bars : 20*5,25*3,25*4,25*5,30*3,30*4,30*5,32*3,32*5,40*5,50*4… 75*8mm, etc.
  • Bearing bar spacing : 20,25,30,32.5,34.3,40,50,60,62,65mm

    Steel grating fence is available in a variety of bearing bar thicknesses,depth and spacing according to the applications and loading requirements.
They are also available in either smooth top or serrated of anti slip grating. As one of leading manufacturer and fabricator of electro forge welded steel grating in China, we supply a variety of sizes for shipment in panels or other specs.

steel grating holemetals China

Application:

   Steel grating fence is widely used in maintenance platform, ventilation screen, storage rack, window and machinery safe guards, factory, workshop, security guard area.

You also can choose our stainless steel grating if others specials environmental challenge. The stainless steel grating is used in  and is also used in many gas and oil producers,chemical plants,food processing facilities and other commercial,architectural applications.
