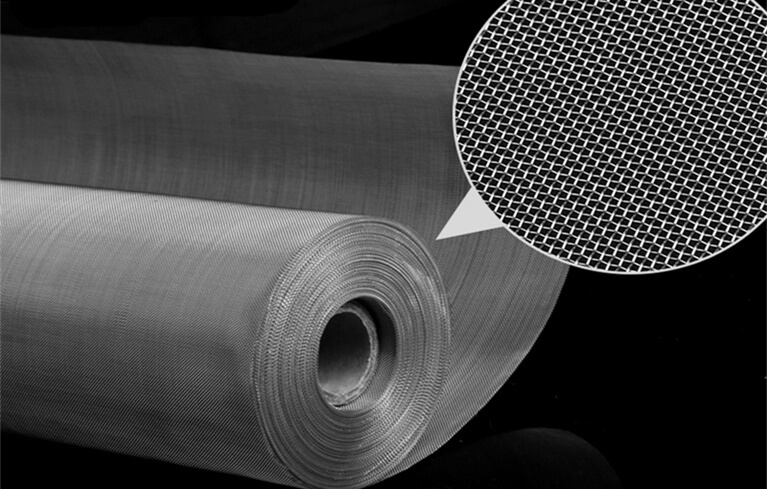

steel woven wire mesh
Description:
Steel woven wire mesh,one of most popular thin woven wire meshes with mesh from 1×1 to 500×500,wire diamater can be 0.025mm to 2.03mm(0.001 inch to 0.08 inch) ,the aperture can be 0.0254 mm to 23.37mm (0.001 inch to 0.92 inch). The aperture will be larger when the wire diameter become more thin.
The variety of woven wire mesh materials and steel wire mesh weave patterns make the finished steel woven wire mesh has many types and finished woven mesh products.
So it is a versatile wire mesh product,have a widely application in industrial, commercial and decoration.
- Materials: Stainless steel 201,304,304L,316,316L grade
- Weaving methods: Plain weave, Twilled weave, Dutch weave,Dutch twill
Specification:
- Wire diameter : 0.02mm- 2.0mm
- Meshes : 1–635 meshes
- Width : Standard less than 2000mm
- Length : 30 mts/Coil or customized rolls/sheets.
Steel woven wire mesh is available in a variety of raw materials,wire diameter,meshes (aperture),weave methods and also can be cut and form to the special sheets or types according to the applications and projects requirements.
Application:
Steel woven wire mesh has endless applications in industrial,commercial and decoration. Such as filters, sieves, separators, strainers, baskets, gas diffusion, drying,automotive grill mesh,breather vents, construction and building meshes,craft papermaking,decorative mesh,fan guard,filtering liquids and gases,fireplace screen,food drying,foundation vent meshes,gutter guard mesh,high transparency mesh,hydraulic filters,insect screen,lamp shade,oil strainers,pest control,security,separate fuel from water
Woven wire mesh size
Mesh | Wire diameter | Aperture | ||
Inch | mm | Inch | mm | |
1×1 | 0.08 | 2.03 | 0.92 | 23.37 |
2X2 | 0.063 | 1.6 | 0.437 | 11.1 |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 |
4X4 | 0.063 | 1.6 | 0.187 | 4.75 |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 |
6X6 | 0.035 | 0.89 | 0.132 | 3.35 |
8X8 | 0.028 | 0.71 | 0.097 | 2.46 |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 |
10X10 | 0.02 | 0.51 | 0.08 | 2.03 |
12X12 | 0.023 | 0.584 | 0.06 | 1.52 |
12X12 | 0.02 | 0.508 | 0.063 | 1.6 |
14X14 | 0.023 | 0.584 | 0.048 | 1.22 |
14X14 | 0.02 | 0.508 | 0.051 | 1.3 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 |
20X20 | 0.02 | 0.508 | 0.03 | 0.76 |
20X20 | 0.016 | 0.406 | 0.034 | 0.86 |
24X24 | 0.014 | 0.356 | 0.0277 | 0.7 |
30X30 | 0.013 | 0.33 | 0.0203 | 0.52 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 |
30X30 | 0.009 | 0.229 | 0.0243 | 0.62 |
35X35 | 0.011 | 0.279 | 0.0176 | 0.45 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 |
50X50 | 0.009 | 0.229 | 0.011 | 0.28 |
50X50 | 0.008 | 0.203 | 0.012 | 0.31 |
60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 |
60X60 | 0.007 | 0.178 | 0.0097 | 0.25 |
70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 |
80X80 | 0.0065 | 0.165 | 0.006 | 0.15 |
80X80 | 0.0055 | 0.14 | 0.007 | 0.18 |
90X90 | 0.005 | 0.127 | 0.0061 | 0.16 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 |
100X100 | 0.004 | 0.102 | 0.006 | 0.15 |
100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 |
110X110 | 0.004 | 0.1016 | 0.0051 | 0.1295 |
120X120 | 0.0037 | 0.094 | 0.0064 | 0.1168 |
150X150 | 0.0026 | 0.066 | 0.0041 | 0.1041 |
160X160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 |
180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 |
200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 |
250X250 | 0.0016 | 0.0406 | 0.0024 | 0.061 |
270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 |
300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 |
325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 |
400X400 | 0.001 | 0.0254 | 0.0015 | 0.37 |
500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 |
635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 |
(Available in stainless steel 304, 304L, 316 & 316L grade) |
